High Technology TSG Grinder
TRS-500ST
- 단부착 제품 Super finishing
- 양끝단 Crowning S/F
- 제품 단속적으로 공급되어도 S/F
- 지석 마모 검출
슈퍼피니싱머신
| ITEM | TRS-500ST | |
|---|---|---|
| Working range | Out diameter | Ø2 ~ Ø60mm |
| Length | Max. 500mm | |
| Workpiece supplying | Thru- feed (Feed roll) | |
| Oscillation | Slide | Air Bearing Slide |
| Stroke | 0 ~ 3mm (Cam Exchange) | |
| Frequency | 100 ~ 2,000cpm (Inverter Control) | |
| Stone head | Stone pressure | Air cylinder |

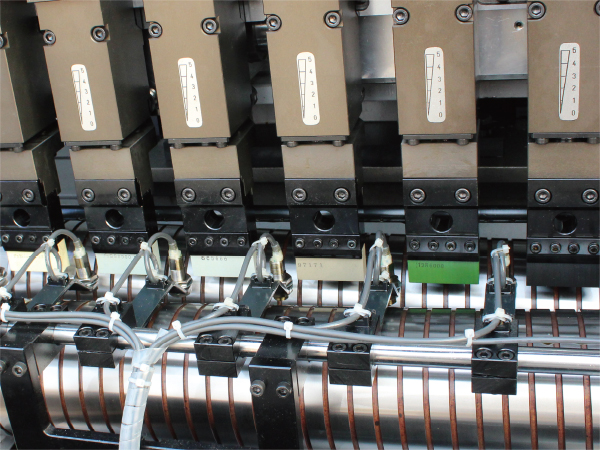

| Unit | 6 Heads | |
| Feed roll | Out diameter | Ø70 ~ Ø110 |
| Shape | Hyperbolic curve feed roller | |
| Motor | Feed box | 2.2kw, 4p |
| Oscillation | 0.75kw, 4p | |
| Floor size | 1,580 x 990mm | |
| Weight | 2,500kg | |
