High Technology TSG Grinder
TEG-510C (CHUCK TYPE)
- Diaphragm & Hydraulic Chuck
- Bed와 냉각수 통로가 분리되어 열변형 최소화
- Angular Grinding 가능 (외경+측면)
- Rotary Forming Dresser 채용
- Wheel Spindle의 다양성
외경연삭기
| ITEM | TEG-510C | |
|---|---|---|
| Support method | Diaphragm & Hydraulic Chuck | |
| Working range | Out-diameter | Ø90mm |
| Width | 50mm | |
| Loading Range | Out-diameter | Ø130mm |
| Wheel spindle | Speed | 3,000m/min |
| O.D*Width*I.D | Ø510 x 50 x Ø254, Ø560 x 50 x Ø254 | |
| 고정밀형 : 유정압 Spindle (Hydro-static) | ||
| Type | 저진동형 : Built-in-Motor Spindle | |
| 고강성용 : Angular Bearing | ||
| Work spindle | Speed | 300 ~ 3,000rpm |
| Swivel angle | 30º (Angular Grinding) | |
| Slide | Linear bearing slide | |
| Dresser | Rotary forming dresser | |
| Loader | Double arm loader | |
| Floor size | 2,300 x 1,800 | |
| Weight | 4,500Kg | |

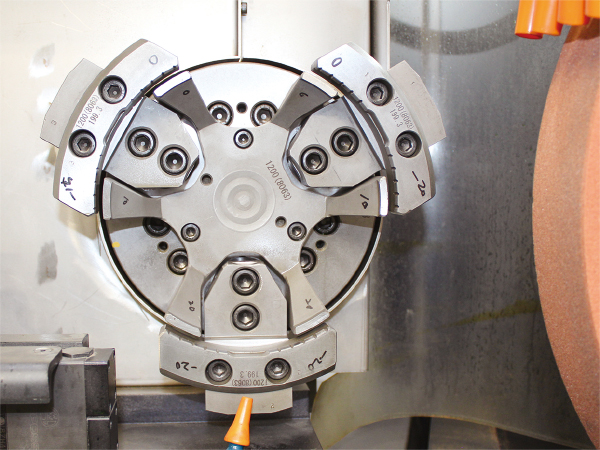

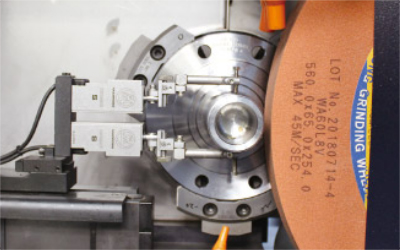

Hydraulic Chuck & In-process Gauge
Rotary Forming Dresser

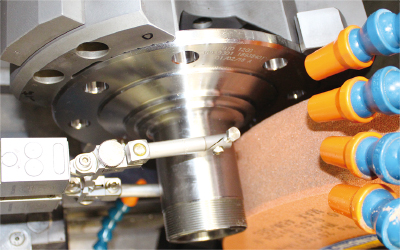

Angular Grinding
