High Technology TSG Grinder
TCG-250
- High stiffness R/W spindle result from both ends supporting
- Applying cylindrical roller bearing at G/W and R/W
- High stiffiness grinding
- Keep clean by eliminating hydraulic tank
Centerless Grinders
| ITEM | TCG‐250 | ||
|---|---|---|---|
| Working range | Out-diameter | Ø2 ~ Ø120mm | |
| In-feed length | Max. 250mm | ||
| Grinding wheel | O.D X Width X I.D | Ø610 x 255 x Ø304.8mm | |
| Supporting type | Cantilever | ||
| Regulating wheel | O.D x Width x I.D | Ø330 x 255 x Ø203.2mm | |
| Supporting type | Dual supporting | ||
| Speed modulating | Inverter | ||
| Dresser | G/W | G/W traverse | Speed control motor |
| Dress advance | Servo motor / Manual | ||
| R/W | R/W traverse | Speed control motor | |
| Dress advance | Manual | ||
| Tilting angle of R/W | -2º ~ +5º | ||
| Motor | G/W driving | 15kw, 4p | |
| R/W driving | 1.5kw, 6p, Inverter | ||
| Floor Size | 3,040 x 1,920mm | ||
| Weight | 6,800kg | ||
Double Support G/W, R/W SPINDLE
Supported with ultra precision double row cylindrical roller bearings
- Maximized stiffness : Small def○rmation from grinding resistance and the rough grinding is possible because the radial clearance is nearly 'zero'.
- Stabilized rotational precision : Grinding efficiency and accuracy are improved remarkably by minimizing runout of spindle.
- Minimized thermal fluctuation : No influence for heating because temperature will rise below 10 degree even it run 24 hours continuously.
- Easy lubrication : Grease lubrication is applied, so there is no need to fill lubrication oil any more.
- Easy maintenance : Spindle unit has a compatibility, and bearing is able to be replaced easily.

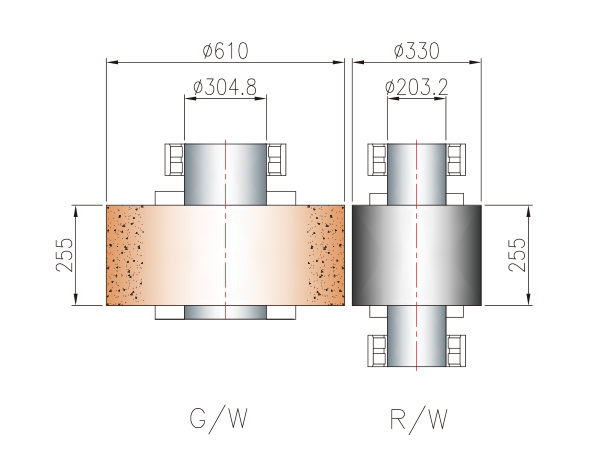

Dual supported wheel spindle (G/W, R/W)
